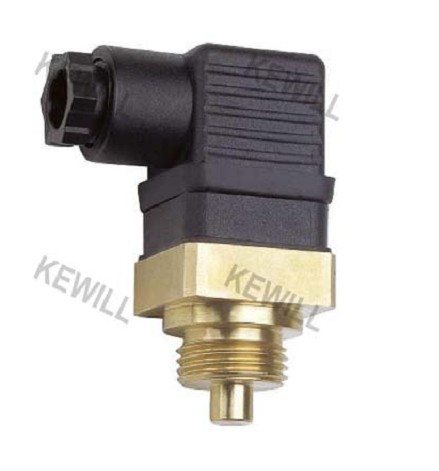

机械式温度开关
                IP65
                                             TK10系列

                                                原理，结构
                                                采用完全密封的双金属温控器，当温度达到设定值时，绕制成环性弯曲状
                                                的双金属片一端受热膨胀触发内置机械装置，开关动作。

                                                特点
                                                与介质接触部分全部采用黄铜材料，接口螺纹有G1/4,G3/8,G1/2三种现货
                                                螺纹可供选择（其他螺纹定制型），温度范围: 30℃…120℃。

                                                应用
                                                可满足液压、润滑、传动系统中对于温度控制的不同要求,用于检测温度是
                                                否超过最高限或最低限。

                                                技术参数
                                                ●测量范围：         固定开关点30℃…120℃（详见下表）
                                                ●最大压力：         10 bar

                                                ●介质温度：         最大130℃

                                                ●输出:           常开/常闭可选触点镀银

                                                ●触点容量:         容量 16A-220VAC

                                                ●固定迟滞:         最大15℃（>80℃)

                                                ●防护等级：         IP65
接线图                                             ●接线方式:         端子接线

                                                ●触液部分材料:       黄铜
                                                ●外壳材料:         黑色 NBR

                                                安装位置

     1     2             1     2

    TK10…N.O.
                       TK10…N.C.

尺寸图

                                                                                探头必须
                                                                                充分接触
                                                                                被测介质

                                                选型表

                                                 TK10-  030  G12     N.O.           详述

                                                  TK10-                    固定开关点

                                                        030                30±5℃

                                                        040                40±5℃

                                                        050                50±5℃

                                                        060                60±5℃

                                                        070                70±5℃

                                                        080                80±5℃

                                                        090                90±5℃

                                                        100                100±5℃

                                                        105                105±5℃

                                                        120                120±5℃

                                                              G14         接口螺纹G1/4"

                                                              G38         接口螺纹G3/8"

                                                              G12         接口螺纹G1/2"

                                                                     N.O. 输出: 常开

                                                                     N.C. 输出: 常闭
