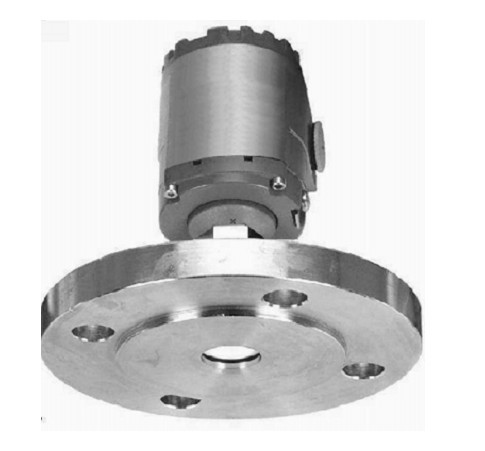

法兰式静压液位变送器
               IP65
                                            LV70系列

                                               原理，结构
                                               基于陶瓷电容技术，当液位增加时，加在陶瓷电容上的压力增大，使得电
                                               容值增大，电容值 正比于液位高低。

                                               特点
                                               法兰式安装，过载能力强，稳定性好，每年优于0.1%的满量程，抗干扰能
                                               力强，极高的精度及重复性,可达0.2、0.5级 ，可在现场调节零点、满量程
                                               。陶瓷测量界面抗腐蚀性好。

                                               应用
                                               适用于粘稠和浆状介质、强腐蚀液体、富含颗粒类介质，不易堵塞。

                                               技术参数
                                               ●测量范围：         见选型表
                                               ●精度等级:         0.2%或0.5%

                                               ●线性度:          ±0.2%或±0.5%

                                               ●迟滞:           ≤±0.01%满量程

                                               ●稳定性:          优于每年0.1%

                                               ●温度影响：         Tk＜±0.02%FS/K

                                               ●量程迁移:         可按标准量程的10:1迁移
                                               ●工作电压          12…36V DC

接线图                                            ●负载电阻 :        ≤1000?

                                               ●工作温度:         -30…85℃
              1       L+
                                               ●介质温度:         -30…80℃

                         4…20mA输出              ●存储温度：         -30…85℃
                                               ●法兰规格：         DN50 PN4.0MPa
              3       L-                                      DN80 PN4.0MPa

                                               ●防护等级:         IP65

                                               ●变送器外壳材料:      模压铸铝
              1
                      L+                       ●法兰材料:         不锈钢316L/聚四氟乙烯（PTFE)  可选

              3           1…5V输出
                                               法兰尺寸图
              2
                      L-

尺寸图                                                      D

                                                                                       F

                                                                    C               E
                                                                    B
                                                                    A

                                                公称直径                         螺栓尺寸    螺栓孔数量
                                                        A  B   D   C  E   F
                                                  DN                           Th        n

                                                  50   165 125 18 99  3   20  M16       4

                                                  80   200 160 18 132 3   24  M16       8

                                                以上尺寸单位均为mm
