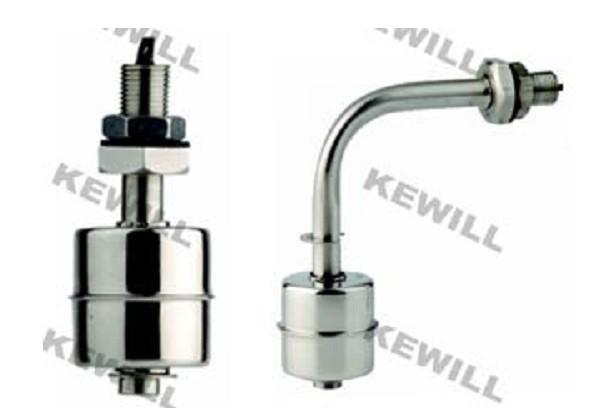

微小型浮子液位开关
              IP67
                                       LV-Mini系列

                                                   原理&特点
                                                   产品为开关量输出型。 液位上升或下降时，带动不锈钢磁性
                                                   浮球（浮块）上下移动，至报警位置及时报警输出。

                                                   参数一览
                                                   ●最大压力：        50 bar

                                                   ●介质温度：        -20~150°C
                                                   ●介质密度：        ≥0.75g/cm3

                                                   ●输出           触点类型:  干簧管开关

                                                                 触点容量:  250VAC, 0.5A

                                                                 输出:    常开/常闭 可选

                                                   ●防护等级：        IP67
                                                   ●接线方式:        直接复线

                                                   ●材料:          316L不锈钢（PTFE聚四氟乙烯可选）
                                                   ●电气寿命:         7
                                                                 10 次

接线示意图

                                                   选型与安装指导

                           已LV-Mini-75为例：
                           安装位置将改变开关               LV-Mini-60    适用顶装与底装
                           输出特性：
                           由上向下安装时为常
                           开输出，浮起时闭合
                                                   LV-Mini-75    适用于侧装

                           由下向上安装时为常
                           闭输出，浮起时断开

尺寸图

         LV-Mini-60                    LV-Mini-75
